دستگاه صنعتی التراسونیک فاف مدل 8301
دستگاه صنعتی التراسونیک فاف مدل 8301
- تولید و مونتاژ و استاندارد
- کشور تولبد کننده : آلمان
- ضمانت و خدمات بعد از فروش
- شرکت ضمانت کننده : شرکت تهران دوخت ماشین
- مدت ضمانت : 24 ماه
- زمان ارسال و تحویل کالا
- مبدا ارسال کالا : از تهران به سراسر کشور

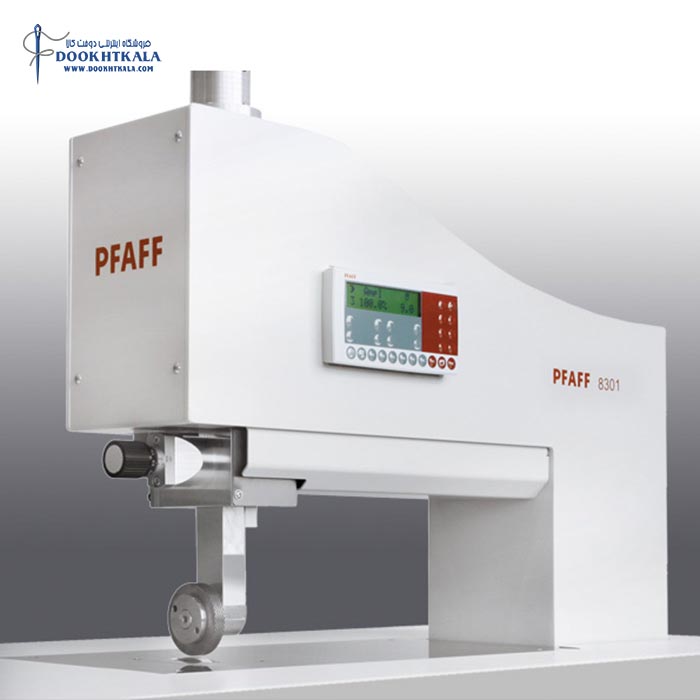

دستگاه صنعتی التراسونیک فاف مدل 8301
دستگاه دوخت التراسونیک عملیات دوخت را از طریق حرارت انجام می دهد. این دستگاه ها در زمینه تولید انواع ساک تبلیغاتی (اسپان باند) ، ماسک ، پوشاک بیمارستانی و انواع کاور کاربرد دارند
Features
- Equipped with differential feed; separate drive for sonotrode and anvil wheel; that means smooth, non-distorted seams or the possibility of adding a some fullness
- No start/stop – marks
- Hardened steel sonotrode, 7 mm
- Hardened steel sonotrode, 10 mm
- Titanium sonotrode, up to 10 mm
- Digital PLC-control
- Operated through touch screen Functions: manual or automatic operation with speed regulation via foot pedal, amplitude from 50 – 100 %, start delay for ultrasonic generator and motor, stop delay for speed, automatic reverse Tacking function
- Welding power constant control and amplitude control
- Inaudible operating frequency of 35 Khz
- Automatic and speed dependent regulation of the power and the amplitude
- Automatic tuning of sonotrode before and during welding
- Steel sonotrode or titanium sonotrode
توضیحات تکمیلی دستگاه صنعتی التراسونیک فاف مدل 8301

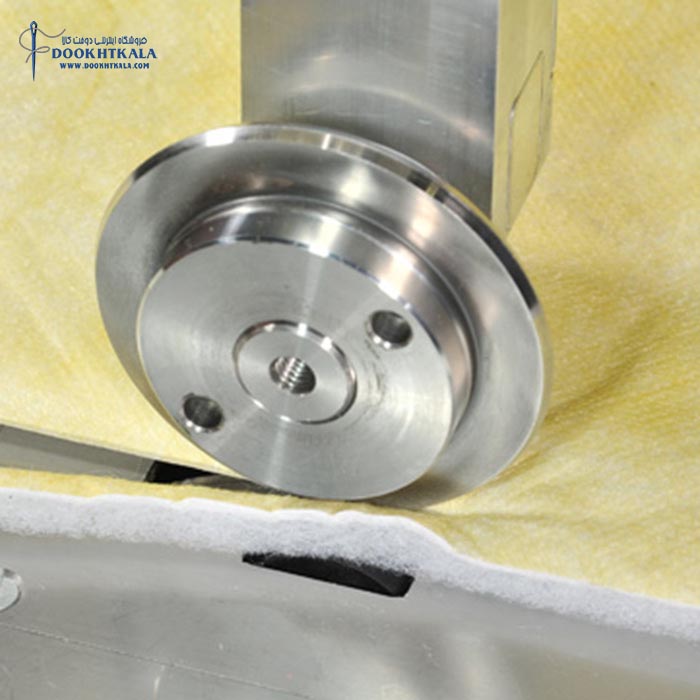

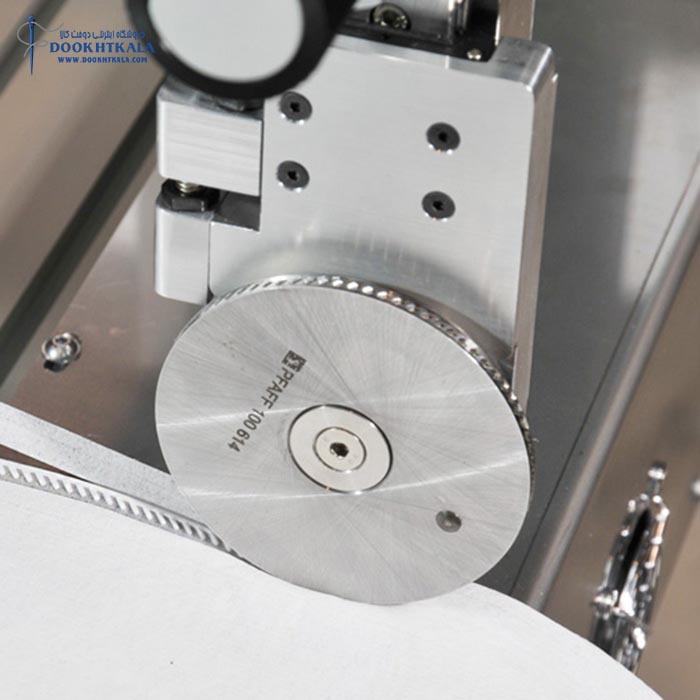

Ultrasonic welding machines of the Seamsonic series combine all the physical advantages of ultrasonic welding with the whole range of technological sewing experience. On the PFAFF 8301/8310/8312 Seamsonic the workpiece is held between the sonotrode and the anvil wheel and welded continuously under pressure. When welding continuously by the ultrasonic method, the material to be welded will be subjected to rapid changing pressure vibrations. The heat develops because of molecular vibrations beneath the material surface, for thin materials within the immediate vicinity of the actual weld.
Ultrasonic welding with the Seamsonic is a modern, innovative and economic alternative and complementary to conventional sewing technology. If assembling of laminates, clothing fabrics with high share of polymer and technical nonwovens is required and in particular to get, the use of the Seamsonic is the first choice.
